Tekin

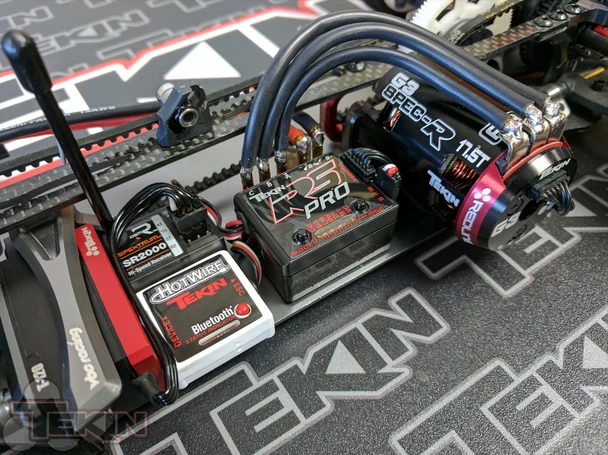

Tekin RS Pro BE / 4.0T Eliminator System
- SKU:
- TT2812
- UPC:
- MPN:
- Shipping:
- Calculated at Checkout
Description
The Tekin RS Pro BE / 4.0T Eliminator System is a top-of-the-line combo for 1:10 scale RC cars, manufactured by Tekin. This system includes the Tekin RS Pro BE electronic speed controller and the Tekin 4.0T Eliminator brushless motor. The RS Pro BE ESC features a high-voltage BEC for powering servo and receiver systems, advanced timing options, and adjustable startup modes. The 4.0T Eliminator motor delivers incredible power and speed, with a precision-balanced rotor and high-quality bearings. This combo is perfect for competitive racing, providing unmatched performance and reliability. Get the Tekin RS Pro BE / 4.0T Eliminator System for top-tier RC performance.
The RS PRO is back! This RS PRO Black Edition utilizes both hardware and software advances recently developed for our latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance.
The RS PRO Black Edition was specifically designed for 1S-2S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a 13.5T, 17.5T or 21.5T SPEC-R motor
for the ultimate Ultra Low Resistance SPEC system! This ESC is not intended to be used with the 6.5T SPEC-R motor.
For 1:10 scale 2WD/4WD Buggy and Stadium Truck and Modified Touring Car we recommend the RSX Modified ESC as these setups tend to run at higher temperatures. The billet housing and fan shroud on the RSX provide sufficient cooling.
Controls: Forward/Brake/Reverse
Input Voltage: RS PRO: 1S-3S LiPo / 4-9S NiMH-NiCD*
RS PRO 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
Motor Limit Brushless Mode: 1S - 2.5T 2-pole 36mm Can
2S Drag Racing - 2.5T 2-pole 36mm Can
2S Track Racing - 8.5T 2-pole 36mm Can
Motor Limit Brushed Mode: 1S - 6 Turn 36mm Can
2S - 6 Turn 36mm Can
Max Current: 560amps per phase**
ON Resistance: .000096ohm**
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.0 x 1.3 x .68" / 24.5 x 33 x 17.25mm
Weight: 1.23oz / 35g
*RS PRO requires a booster for 1S LiPo operation.
**per manufacturer spec
SPEC OFF ROAD
1:10 2WD Buggy 13.5T / 17.5T
1:10 2WD Truck 13.5T / 17.5T
1:10 2WD Short Course 13.5T / 17.5T
1:10 4WD Buggy 13.5T
SPEC ON ROAD
1:12 2WD SPEC Pan Car 13.5T / 17.5T
1:10 2WD SPEC Pan Car 13.5T / 17.5T
1:10 World GT 21.5T
1:10 2WD Formula 1 21.5 / 25.5T
1:10 4WD Touring Car 13.5T / 17.5T
SPEC OVAL
1:10 2WD 13.5T / 17.5T
1:10 SK Car 13.5T / 17.5T
1:10 Stock Car 13.5T / 17.5T
1:10 Winged Sprint 13.5T / 17.5T
DRAG RACING
1:10 No Prep
1:10 Pro Stock
1:10 Pro Mod
1:10 Rail
The RS PRO is not recommended for any 2S Modified track racing applications as there is no heat sink or fan. Please see the RSX PRO for your Modified Racing needs!
ULR: Ultra Low Resistance Design
Specifically Designed for Spec & Stock Racing
RS PRO 1-S equipped with built-in Booster
3rd Channel Input for On-The-Fly Drag Brake Adjustments <>
QuickTune™ One Touch Programming
Adjustable Torque Control *
Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC *
HotWire™ Programming Port *
Data Logging Capability *
Sensor Checker
On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
Lightweight Chassis Design
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
ON BOARD QuickTune™ PROGRAMMABLE FEATURES
DB - Drag Brake (13 steps)
BS - Brake Strength (13 steps)
LM - Torque Limiter (7 steps)
NW - Neutral Width (13 steps)
TP - Timing Profiles 5 Preset - 2 Custom*
MT - Motor Type
Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
VC - Voltage Cutoff : RS PRO 2S, 3S, Custom*
RS PRO 1-S - 1S, Custom*
* requires HotWire™ sold separately.
Update ESC Firmware
Create, Save, Load and Share Custom ESC Profiles
Drag Brake (0-100 steps)
Active Drag (ON/OFF)
Brake Strength (0-100 steps)
Brake Minimum (0-30 steps)
Active Braking (0-6 steps)
RPM Brake (0-10 steps)
Brake Frequency (750hz - 12kHz)
