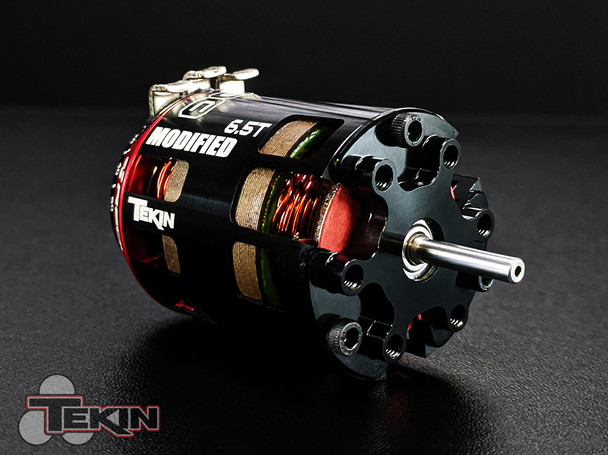

Tekin 6.5T Gen4 Modified Motor

The Tekin 6.5T Gen4 Modified Motor is a top-quality 1:10 RC car motor that boasts high performance and impressive durability. Featuring advanced design and cutting-edge technology, this motor ensures maximum power output and efficiency for your RC vehicle. Its rugged construction means it can withstand even the toughest racing conditions, providing superior reliability and longevity. Manufactured by the renowned Tekin brand, this motor is engineered to deliver outstanding performance and meet the demands of serious RC car enthusiasts. Ideal for competitive racing, this motor is a must-have for anyone looking to take their RC driving experience to the next level.

Tekin’s fourth generation brushless motors are engineered for award-winning performance. Utilizing the best materials available, we designed the GEN4 to cut weight while reducing resistance, resulting in a purebred racing machine. From Drag Racing to 4WD Modified Buggy, the GEN4 motors handle all situations, providing the smooth power and control across all RPMs when you need it. The GEN4 Modified motor is competition performance with the speed you need to win. Pair with an RSX Pro for the ultimate in modified racing equipment.

The GEN4 motor line is a completely new ground-up design. We put in the design and test time so you can reduce your lap times. The new stator is precision stamped and pressed, increasing efficiency and reducing resistance. Our motors are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and re-buildable, the new GEN4 Modified motor is a premium performance power plant for the serious racer.

Input Voltage: 1-2S LiPO - 9.5T / 8.5T / 7.5T / 6.5T / 5.5T

Weight: 5.1oz / 145g

Shaft Dimensions: 3.18mm (1/8") x 15.3mm

Motor Diameter: 35.85mm / 1.40"

Motor Length: 50.25mm / 1.978"
Max Operating Temperature: 180°F / 82°C

Bearing Dimensions: Front: 4x13x5mm

                                     Rear: 1/8x3/8x5/32"

Rotor Size: 12.5mm GREEN

Rebuildable: Yes

OFF ROAD

 1:10 2WD Modified Buggy

 1:10 2WD Modified Truck

 1:10 2WD Modified Short Course

 1:10 4WD Modified Buggy

ON ROAD

 1:12 2WD Pan Car

 1:10 2WD Pan Car

 1:10 4WD Modified Touring Car

 1:10 FWD Modified Touring Car

 1:10 Drift

DRAG RACE

 1:10 Street Eliminator

OVAL

 1:10 2WD

 1:10 SK Car

 1:10 Stock Car

 1:10 Winged Sprint

 1S LiPo Classes

 60 Degrees Adjustable Timing Advance

 Modified Racing Specific Design

 CNC Machined 6061-T6 Billet Aluminum Heat Sink Can

 Neodymium Sintered Magnet

 Precision Engineered for Maximum Energy Conversion

 High Purity Copper Windings Maximize Conductivity

 Low Resistance, High Power Solder Tabs

 Sensored System Ready

 Anodized End-bell Plates Maximize Corrosion and Wear Resistance

 High RPM Precision Bearings

 Oversized Front Bearing

 Rebuild-able Design

 Solder-less Sensor PCB Replacement

 Legal in Major Race Governing Bodies

ROAR Approved

MOTOR ONLY

TT2766 - 9.5T GEN4 Modified Motor
TT2767 - 8.5T GEN4 Modified Motor
TT2768 - 7.5T GEN4 Modified Motor
TT2769 - 6.5T GEN4 Modified Motor
TT2770 - 5.5T GEM4 Modified Motor

SYSTEMS

RS GEN3
TT2798 - RS GEN3 / 9.5T GEN4 System
TT2799 - RS GEN3 / 8.5T GEN4 System

RSX PRO
TT2800 - RSX PRO / 8.5T GEN4 System
TT2801 - RSX PRO / 7.5T GEN4 System
TT2802 - RSX PRO / 6.5T GEN4 System
TT2803 - RSX PRO / 5.5T GEN4 System

MOTOR PARTS

TT2786 - Redline GEN4 Full Rebuild Kit

TT2787 - Redline GEN4 End Cap Set & Hardware

TT2789 - Redline GEN4 Sensor PCB

TT2790 - Redline GEN4 Solder Tabs & Isolator

BEARINGS

TT2788 - Redline GEN4 Bearing Set

                Front: 4x13x5mm / Rear: 1/8x3/8x5/32"
TT3849 - Redline GEN4 Ceramic Bearing Set

                Front: 4x13x5mm / Rear: 1/8x3/8x5/32"

TUNING ROTORS

TT2777 - 12.5mm TORQUE GREEN Modified Rotor
TT2778 - 12.3mm TORQUE ORANGE Modified Rotor
TT2779 - 12.1mm TORQUE WHITE Modified Rotor
TT2780 - 13mm TORQUE RED Modified Rotor
TT2781 - 13.5mm ULTRA TORQUE YELLOW Modified Rotor

SENSOR CABLES

TT3835 - FlatWire 100mm Ribbon Sensor Cable

TT3836 - FlatWire 150mm Ribbon Sensor Cable

TT3837 - FlatWire 200mm Ribbon Sensor Cable

TT3838 - FlexWire 100mm Sleeved Sensor Cable

TT3839 - FlexWire 150mm Sleeved Sensor Cable

TT3840 - FlexWire 200mm Sleeved Sensor Cable

TT3841 - FlexWire 275mm Sleeved Sensor Cable
